Sensor | CMOS – HD Resolution 720P (720*1280) |
Minimum Lighting | 0.5 Lux @ F1.6 |
Optical Zoom | 18× with Varifocal zoom lens |
Viewing horizontally | 55.2°– 3.2° from wide to tele |
Focus/Iris | Yes, Auto and Manual |
Pan/Tilt Sigyn PTZ | Pan – 350° / Tilt – 180° |
Pan/Tilt Sigyn Zoom | No |
Lights | 4 LED Lights |
Power supply / communication | From RADCAM Sigyn – Netbox |
Size Sigyn PTZ | 158 mm (H) × 77 mm (W) × 248 mm (L) 6.22” (H) x 3.03” (W) x 9.76” (L) |
Size Sigyn Zoom | 76 mm (H) × 77 mm (W) × 265 mm (L) 2.99” (H) x 3.03” (W) x 10.43” (L) |
Weight Sigyn PTZ | 3.4 kg (7.49 lbs) (incl. standard adaptor) |
Weight Sigyn Zoom | 1.6 kg (3.52 lbs) |
Housing | Stainless Steel |
Connector | Fischer Core Series, Push-Pull |
Cable | Special cable to the netbox – Max length 8 m (26 ft) – Diameter 7.8 mm (0.307’’) |
IP Class | IP65 |
Operating Environment | 5 to 60 °C (40 to 140 °F) |
Humidity | 0 to 100% RH, non-condensing |
Type of radiation protection | Gamma Radiation protection |
Dose rate | Up to 100 Gy/h (10 kRad/h) |
Integrated dose | >1 kGy (100 krad) for high dose rate (>10 Gy/h / 1 kRad/h) >1,5 kGy (150 krad) for mid to low dose rate (<10 Gy/h / 1 kRad/h) |
Radiation Tolerant Cameras

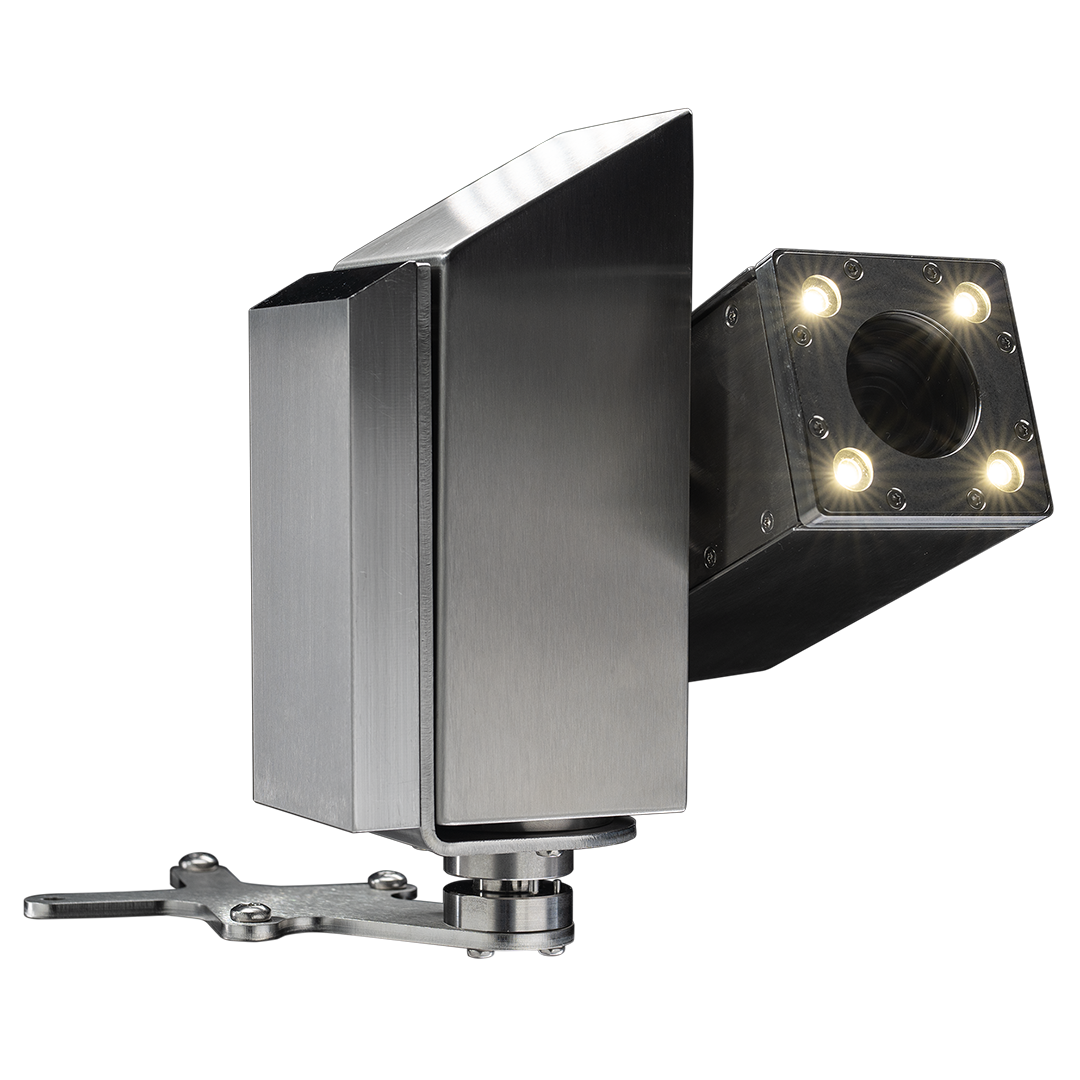

RADCAM Sigyn
Designed for fast deployment operations and also multipurpose usage
- IP camera with poe designed for nuclear
- Used for temporary or long-term installation
- Light-weight PTZ head easy to maneuver
- Several mounting options available
- Fast deployment, setup in minutes
- TID > 1500 Gy
Product overview
The RADCAM® Sigyn is a color sensor digital IP PoE camera which is designed for fast deployment operations and also multipurpose usage within the reactor containment building and other radioactive areas. With a distributed design, it gives flexibility off positioning and installation. The RADCAM Sigyn is the first of a new series and is based on ISECs new IP RadHard camera platform.
Key features
- 720p HD Resolution
- Compact and Lightweight
- True PTZ with 18x zoom
- 4 LED illuminators
- TID > 1500 Gy
- Dose rate:100 Gy/h
- Robust design (seismic qualified)
- PoE connection
- IP65 Stainless Steel housing
- Radiation exposure Sensors
- Automatic protection mode
- Radiation Exposure sensors
- ONVIF compatible (universal VMS compatibility)
- Out-of-the-box ready
Documents
Areas of application

Pressure Water Reactor
- Temporary or permanent Fire-watch
- Radwaste Process and Handling cranes
- Temporary supervision during production cycles
- Emergency response
- Outage supervision

Boiling Water Reactor
- Temporary or permanent Fire-watch
- Radwaste Process and Handling cranes
- Temporary supervision during production cycles
- Emergency response
- Outage supervision

Heavy Water Reactor
- Temporary or permanent Fire-watch
- Radwaste Process and Handling cranes
- Temporary supervision during production cycles
- Emergency response
- Outage supervision

Nuclear Back-End
- Radwaste handling
- Crane positioning systems
- Storage vault
- Final Disposal Handling systems
